Immersion Ultrasonic Transducer Plate

Suitable for cleaning metal and parts before or after electro-plating in the industries of precision electronic, watch and clock, optical, glasses, metal and mechanics, jewelry, semiconductor, etc.

Ultrasonic Generator

use the latest circuit technology, stable high frequency signal output
with power adjustment and display
with digital timer

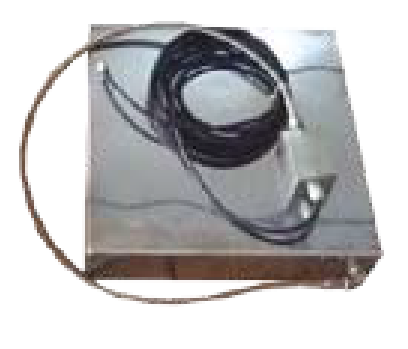

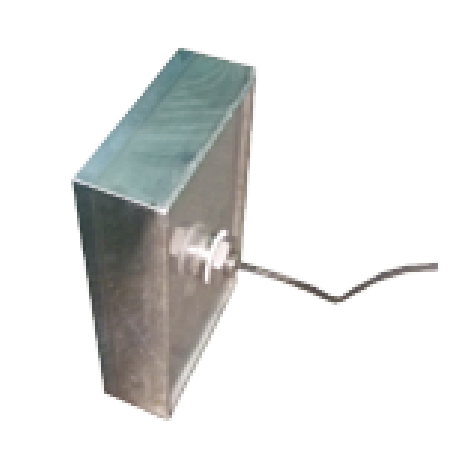

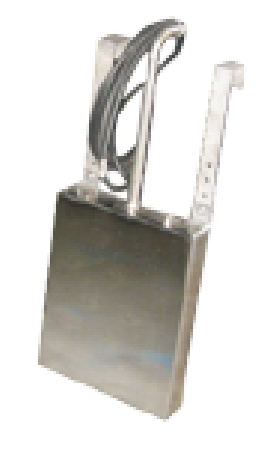

Transducer Plate

transducer plate made of SUS3I6L stainless steel, with 30um chromium plating (optioned) stronger resistance to corrosion

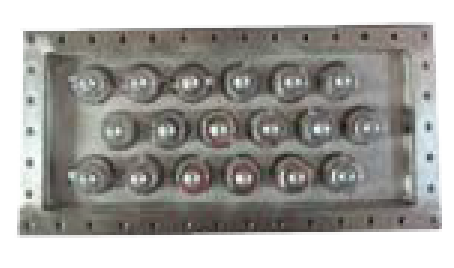

use high quality ultrasonic transducer, will better efficiency, bigger power output
immerse in different types of containers for different kind of cleaning purposes as in base-mounted, side-mounted and top mounted requested by custmers

Specification

Specification/ Model	ACE-06P	ACE-12P	ACE-18P	ACE-24P	ACE-30P	ACE-36P	ACE-48P
Ultrasonic power	300 W	600 W	900 W	1200 W	1500 W	1800 W	2400 W
Ultrasonic frequency	25 / 28/ 40 / 68 / 80 / 120 KHz
Size of vibration(mm)	290x200x100	360x270x100	420x320x100	480x380x100	500x460x100	650x400x100	700x500x100
Voltage (50Hz)	220 V.

Remark: working frequency ranged from 25 KHz to 140 KHz
A = 25 KHz
B = 28 KHx
C = 40 KHz
D = 68 KHz
E = 80 KHz
F = 120 KHz
G = 140 KHz

ACE - 4R Series Ultrasonic Vapour Degreaser

Apply non-flammable organic solvent such as chlorylene, methyl chloroform N-Propyl Bromide. It has following functions: thermo cleaning, supersonic cleaning, steaming cleaning, frozen drying, cleaning solvent recycle, It may be used clean away turpentine on electronic parts or printed circuit, grease on parts of precise machine, clock buckle, clock cover, lamp, glass products etc.
